Kirtas KABIS IIIW

Most advance Robotic Book Scanner

Mobirise

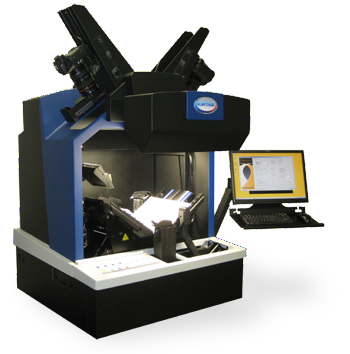

Kirtas KABIS IIIW

Kirtas KABIS IIIW

Quality results are the primary objective of any book digitization project. Quality includes superior images, high accuracy OCR, comprehensive metadata, and complete book integrity. Achieving this will allow you to use the book images to their fullest capability both now and for future undefined needs. Do it once so they last forever!

Kirtas KABIS IIIW Key Features at a Glance


The new KABIS IIIW system continues the Kirtas tradition by providing the SmartCradle™ with new automatic book centering that increases post-processing productivity. The 110 degree position is optimal for low stress, gentle book positioning and is ideal for fragile and rare books. Air flows and Enhanced Page Separator combine to achieve page separation and the newest SureTurn™ robotic arm with its vacuum head will gently lift and turn the page. Within the vacuum head is our Page Edge Sensor technology to detect multi-page or no-page lift conditions and automatically take programmable corrective action. The result is full book content integrity and quality. The newest KABIS Manager Plus software provides a simple user interface to let you start digitizing quickly. The new interface provides easier monitoring of page capture and management for accuracy.


Product Details

Quality, high-speed (2,890 pages per hour) capture
Patented SmartCradle dynamic book handler
Low-stress support for rare, fragile documents
Robotics that are gentler than the human hand
SureTurn robotic arm uses vacuum system to gently pick up and turn one page at a time
Digitize 3 & 4 ring notebooks and spiral bound
KABIS Manager Plus retrieves available metadata and creates MARC records, DublinCore, & MODS files

Technical Specifications

OPERATION
Automatic, Semi-automatic, Manual

CYCLE SPEED
Up to 2,890 images per hour

TONE
24-bit Color, JPG or CR2

CAPTURE
22.1 megapixel Canon Camera 325, 400, 500 or 600 ppi (book size and lens dependent)

PAGE SIZE
4.5” x 7” min. (11.5 x 17.8 cm) automated mode
(smaller by manual page turning)
11” x 14” max. (28.0 x 35.6 cm)

PAPER
13–80 lb (49–300 gsm)

BINDING
Up to 4” (10 cm)

 DIMENSIONS
33” x 32” x 47” (W x D x H)
84 x 82 x 121 cm (W x D x H)

ACCURACY
Page Edge Sensor, Enhanced Page Separator

WEIGHT
200 lbs (91 kg) approx.

POWER
Standard 110-240 VAC, 50/60 Hz
15 Amp Receptacle

 CERTIFICATION
AN/NZS, CE, CSA, EN, FCC, RoHS, UL, EAC

OUTPUT
JPEG or CR2

File Output from LIMB:
Color, grayscale, bitonal TIFF, JPEG, JP2, PDF, PDF/A, BMP, etc., METS compliant
File Output with LIMB and OCR added: METS/ALTO compliant, txt

CONTROLLER
Quad Core Xeon processors (min.)
16 GB RAM
1 TB hard drive
Two Gigabit Ethernet cards
Windows 7 64 bit Pro
22'' Wide Screen Monitor
Mini keyboard & mouse

INCLUDED
KABIS Manager Plus software
KABIS Controller
Monitor arm mount and keyboard shelf
Barcode scanner
Small book extension kit
Foot pedal
Enhanced Page Separator
Page Edge Sensor

 OPTIONAL
Height-adjustable, ergonomic table
LIMB™ Imaging Software
LIMB™ Desktop Software
LIMB™ Server Software
LIMB™ Workstation 13 computer
LIMB™ Server 13 Computer
ABBYY or IRIS OCR Modules
100mm Macro Lens (2 required)
